Gearbox | Hanalei Fins System | Gearbox 2 Centre Finboxes

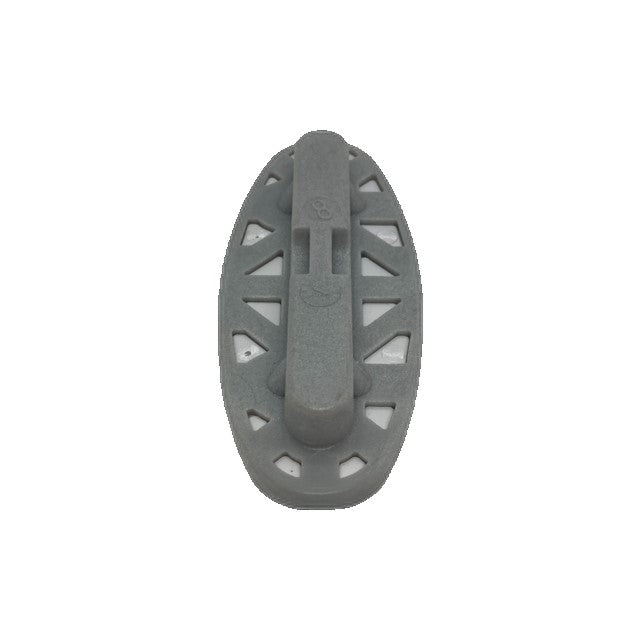

Gearbox 2 Finboxes - WHITE CENTRE BOX

The GEARBOX 2 FINBOXES are designed in Hawaii and made in the USA.  They are as light as possible without compromising the strength. The unique patent pending design, delivers unprecedented strength for an under the glass system.

The Gearbox design also gives the opportunity to use as an “after lamination” install as well. Once installed, GEARBOX 2 is almost invisible!

GEARBOX 2 employs a familiar screw placement, located on the inner side of the box, generating a locking force on the fin base. The fin bases have recesses onto which the screws land to help force the base into the slot.

The box's slot is compatible with dual tab fins, and with our own full length base.

To assist in the fine tuning of a board, the slot features 5mm (3/16") of movement forward and backward. Not only does this help when installing a fin, but it also facilitates control over the performance of the fins.

The two step install process creates a cavity with a shelf, onto which the load beam collar rests. Providing better bonding to the surfboard blank.

The complete routing system kit makes the installation process easier

GEARBOX 2 CENTRE FINBOXES Give you the option to make a Thruster or a 5 Fin Set-up

PLEASE NOTE: FOAM SURROUNDS FOR THE 1 ROUT SYSTEM ARE NOT INCLUDED IF NEED PLEASE ADD TO YOUR CART.
